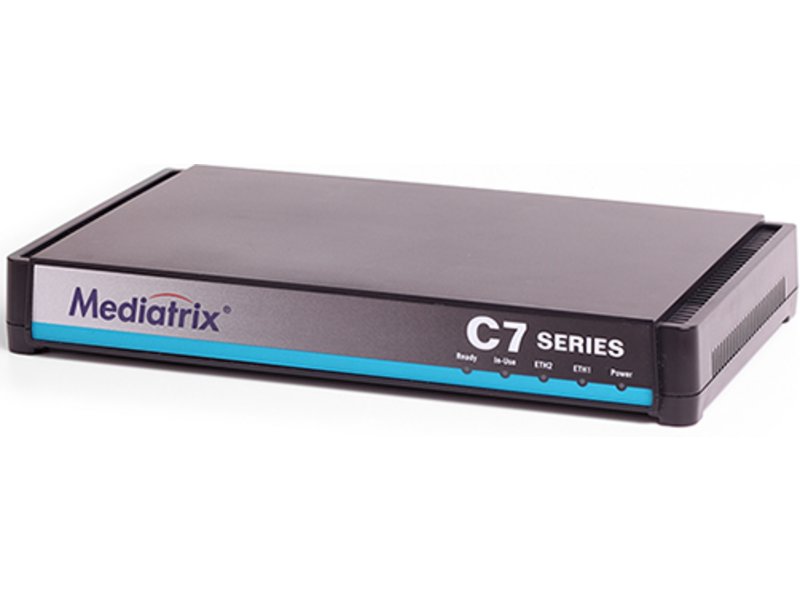

The Mediatrix C7 Series allow enterprises to lower communications costs over any IP link. They are multi- function devices combining VoIP IAD, Gateway, IP Router, SIP aware NAT/Firewall and QoS control in a secure and powerful platform.
Follow the steps below in order to configure the Media5 Mediatrix C7 Series gateways with your T38Fax.com account.
NOTE: Firmware Revision DGW 2.0+ is Required!
SIP Servers

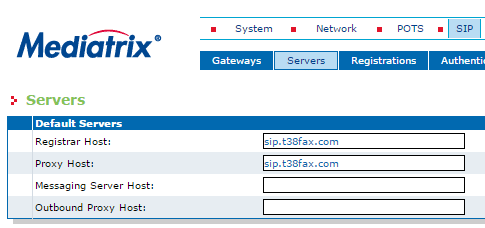

Configure the following under the "SIP -> Servers" menu:
Registrar Host: sip.t38fax.com
Proxy Host: sip.t38fax.com
Be sure to click the "Apply" button.
SIP Registration

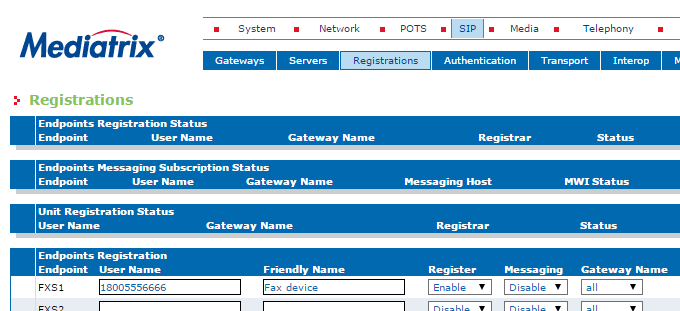

Under the "SIP -> Registrations" menu, choose the appropriate FXS port and configure the following:
User Name: SIP Usernamehelp
Friendly Name: Configure as you like, not mandatory.
Register: Set to Enable
Be sure to click the "Apply" button.
SIP Authentication

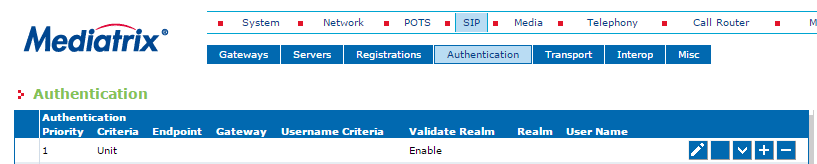

Under the "SIP -> Authentication" menu, choose the appropriate FXS port as the previous step and click the edit icon, then configure the following:
Criteria: Set to Endpoint
Endpoint: Set to Desired FXS Port (ie: Port 1)
Validate Realm: Disable
User Name: SIP Usernamehelp
Password: SIP Passwordhelp
Be sure to click the "Apply" button.
SIP Interop

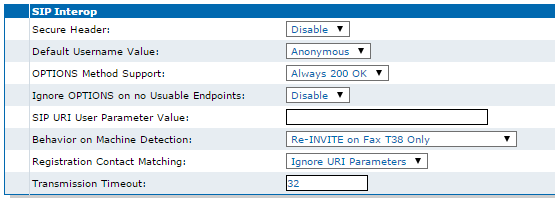

Under the "SIP -> Interop" menu, head to the "SIP Interop" box and configure the following:
Registration Contact Matching: Ignore URI Paramets

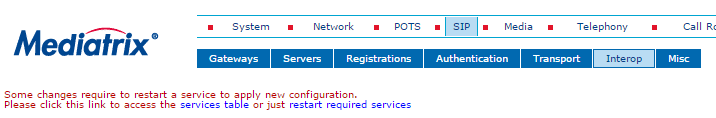

Click on the "restart required services" message in order to apply all changes. If the configuration is correct then the Ready green light in the Mediatrix front panel will turn on.
Fax Machine
Finally, configure your fax machine to work properly with your Power-T.38 SIP Trunk. Review our Recommended Fax Machine Settings for details.
