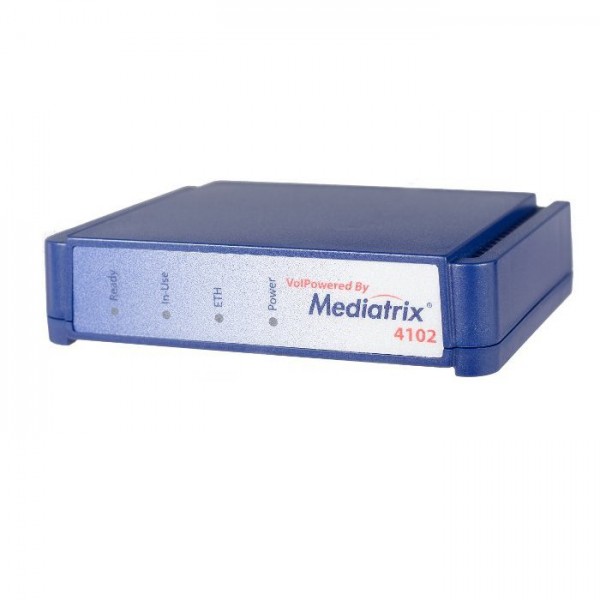

The Mediatrix 4100 Series features VoIP adaptors that interconnect analog telephones, faxes, and modems into SIP based systems. The Mediatrix 4100 Series allows operators to shorten deployment time and ensure a highly secure environment to enable cloud telephony services into branch offices and SMBs.
Follow the steps below in order to configure the Mediatrix 4100 Series gateways with your T38Fax.com account.
NOTE: Firmware Revision DGW 2.0.17.285+ is Required!
SIP Servers
Configure the following under the "SIP -> Servers" menu:
Registrar Host: sip.t38fax.com
Proxy Host: sip.t38fax.com
Be sure to click the "Apply" button.
SIP Registration
Under the "SIP -> Registrations" menu, choose the appropriate FXS port and configure the following:
User Name: SIP Usernamehelp
Friendly Name: Configure as you like, not mandatory.
Register: Set to Enable
Be sure to click the "Apply" button.
SIP Authentication
Under the "SIP -> Authentication" menu, choose the appropriate FXS port as the previous step and click the edit icon, then configure the following:
Criteria: Set to Endpoint
Endpoint: Set to Desired FXS Port (ie: Port 1)
Validate Realm: Disable
User Name: SIP Usernamehelp
Password: SIP Passwordhelp
Be sure to click the "Apply" button.
SIP Interop
Under the "SIP -> Interop" menu, head to the "SIP Interop" box and configure the following:
Registration Contact Matching: Ignore URI Parameters
Click on the "restart required services" message in order to apply all changes. If the configuration is correct then the Ready green light in the Mediatrix front panel will turn on.
Fax Machine
Finally, configure your fax machine to work properly with your Power-T.38 SIP Trunk. Review our Recommended Fax Machine Settings for details.
